Geotextile tubes, ultimate protection for rivers and coastal area

Geotextile tubes

Fibrotube, also known as Geotextile Tubes is prefabricated in cylindrical container form and made of high strength woven geotextile. Typically installed with a scour apron, it is an effective system for dredging application, dewatering and Coastal Protection application. The flexible fabric structure provides ready adaptation to various landforms and field conditions

Geotextile Tubes can be applied to civil engineering, environmental and hydraulic industries, including Coastal Protection, Beach Nourishment and restoration (coastline that washed by wave action)Íž breakwaters and groinsÍž ground reinforcement of civil engineering structures such as reclaimed land & artificial islands, formation of temporary roads & cofferdams, and dewatering of dredged materials & sludge.

Advantages:

  • Optimized physical & hydraulic properties of the fabrics developed for the geotextile tube application
  • Remarkable flexibility of the fabric structure providing ready adaptation to various landforms and field cobditions
  • Special fabrics with higher permeability under the same AOS compared to other tubes
  • Bi-axial strengthened fabrics available up to 300kN/m x 300kN/m
  • High durability and seam strength allowing the stable formation of structures

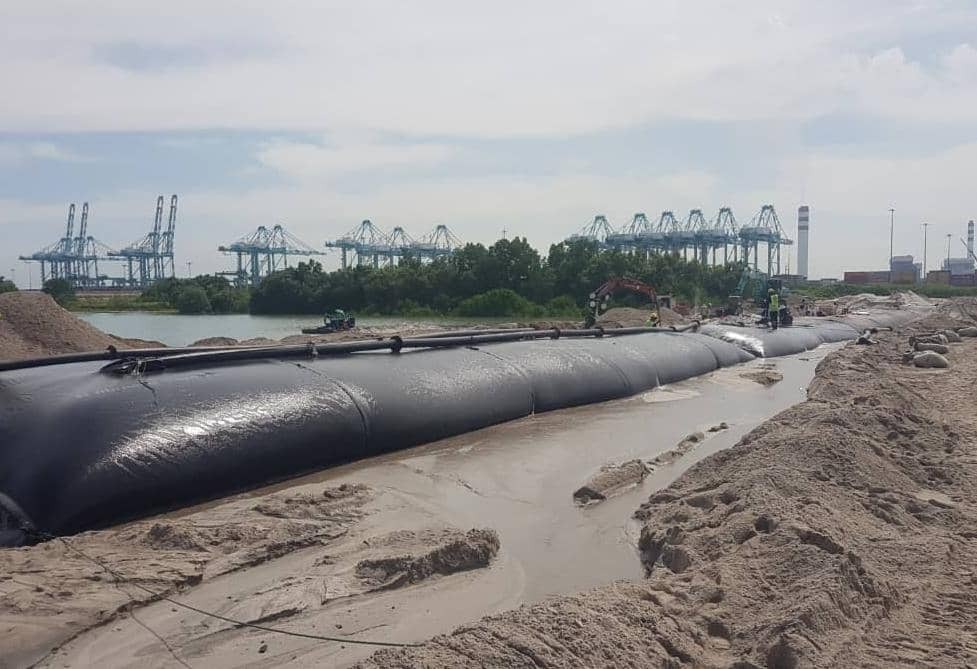

Fibrotubes, for coastal beach protection and breakwater application.

geotub-005l
geotub-006l
geotub-001l
geotub-002l
geotub-003l

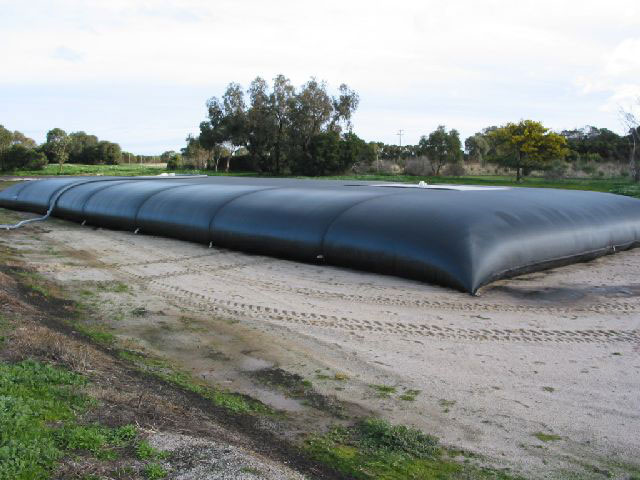

geotub-004l

Applications

Erosion Control
